Chirag Aluminium stands out as a top-notch manufacturer and supplier of Aluminium Sheets and Plates right in Chennai, India. They pride themselves on delivering high-quality products tailored to meet the diverse needs of various industries. Using cutting-edge technology and premium aluminium alloys, their sheets and plates are celebrated for their impressive strength, lightweight design, and resistance to corrosion. You’ll find Chirag Aluminium’s products making a mark in construction, aerospace, marine, automotive, and engineering sectors. With a strong commitment to international quality standards, timely deliveries, and competitive pricing, they’ve become a go-to source for aluminium flat product solutions.

These Aluminium Sheets and Plates are crafted from high-purity aluminium alloys, often enhanced with elements like magnesium, silicon, manganese, or copper to boost their performance. They offer remarkable corrosion resistance, outstanding tensile strength, and durability, all while being much lighter than steel. Their mechanical properties include excellent machinability, ductility, and impressive thermal and electrical conductivity. The smooth surface finish and consistent thickness ensure precision during fabrication, and their non-toxic, non-magnetic, and recyclable qualities make them perfect for sustainable applications across a range of industries.

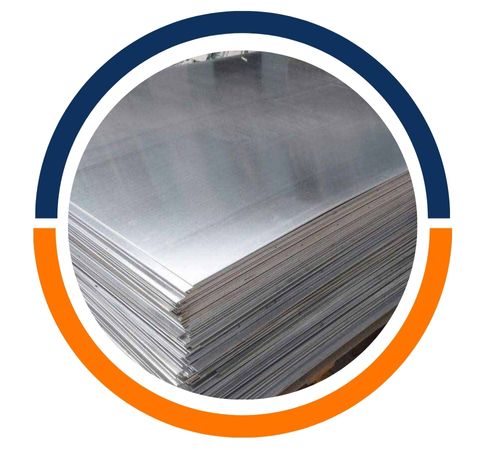

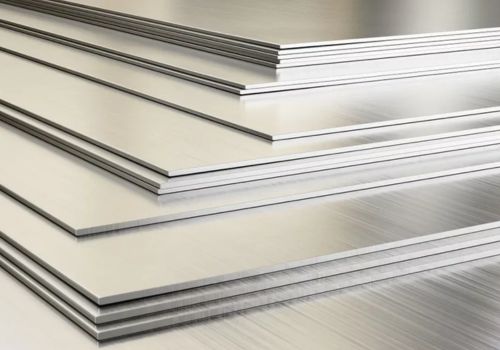

Aluminium Alloy Sheets

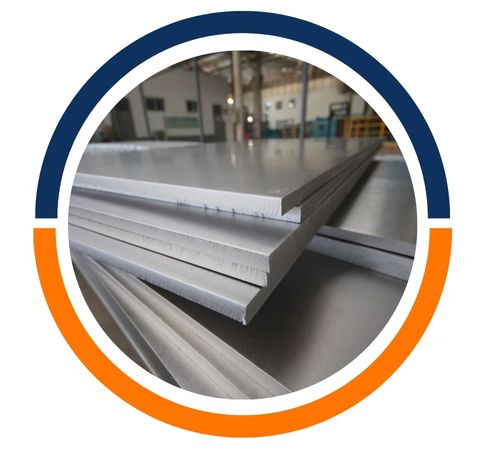

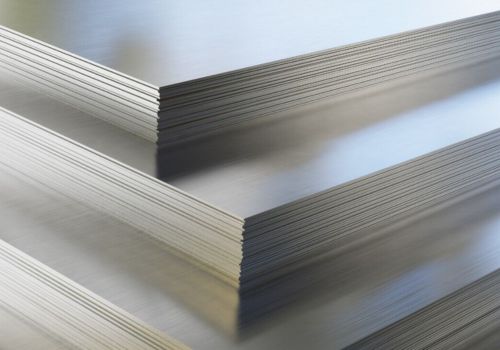

Aluminium Hot Rolled Sheets

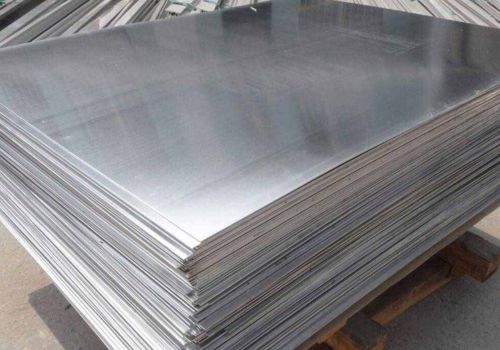

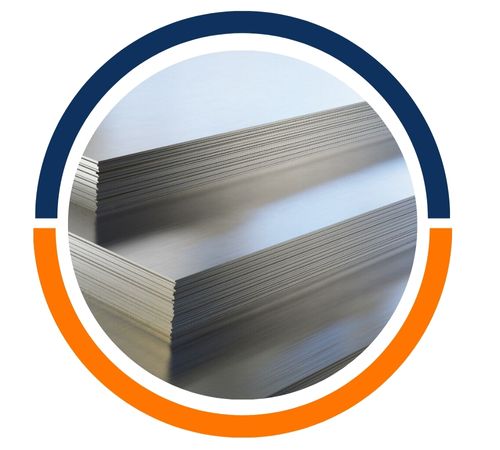

Aluminum Cold Rolled Sheets

Alumnium Clad Sheets Distributor in India, Al Perforated Plates Supplier in Chennai, Aluminium Alloy Sheet Weight Chart, Al Plates Exporter in India, Aluminium Polished Sheets Manufacturer in Chennai, Aluminium Shim Sheet and Plate Price List in Chennai, Alumnium Chequered Plates Sizes in mm, Alumnium Alloy Hot Rolled Plate Distributor in Chennai, Al Sheets and Plates India

Specifications of Aluminium Sheets and Plates

Specifications	ASTM / ASME SB209
Size	1000 mm x 60610 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 60610 mm x 60610 mm, 60610 mm x 4000 mm
Finish	Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Thickness	0.1 to 12 mm Thk
Form	Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange)
Hardness	Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.

Chemical Compositions of Aluminium Sheets and Plates

Alloy	% Si	% Cu	% Fe	% Mg	% Mn	% Cr	% Zn	% Ti	% Others	% Al
EN AW-1050 A	0.25 Maximum	0.05 Maximum	0.40 Maximum	0.05 Maximum	0.05 Maximum		0.07 Maximum	0.05 Maximum		99.5 Min
EN AW-1070 A	0.20 Maximum	0.03 Maximum	0.25 Maximum	0.03 Maximum	0.03 Maximum		0.07 Maximumimum	0.03 Maximum		99.7 Min
EN AW-1100	Si+Fe 0.95 Maximum	0.05 – 0.20			0.05 Maximum		0.10 Maximum	0.05 Maximum		99.0 Min
EN AW-2011	0.40 Max	5.00 – 6.00	0.70 Max				0.30 Max		Bi : 0.20 – 0.60 Pb : 0.20 – 0.60	Remainder
EN AW-2014	0.50 – 1.20	3.90 – 5.00	0.70 Max	0.20 – 0.80	0.40 – 1.20	0.10 Max	0.25 Max	0.15 Max		Remainder
EN AW-2024	0.50 Max	3.80 – 4.90	0.50 Max	1.20 -1.80	0.30 – 0.90	0.10 Max	0.25 Max	0.15 Max	0.15 Max	Remainder
EN AW-3003	0.60 Max	0.05 – 0.20	0.70 Max		1.00 – 1.50		0.10 Max		0.15 Max	Remainder
EN AW-3103	0.50 Maximum	0.10 Maximum	0.70 Maximum	0.30 Maximum	0.90 – 1.50	0.10 Maximum	0.20 Maximum	0.10 Maximum		Remainder
EN AW-6101A	0.30 – 0.7	0.05 Maximum	0.40 Maximum	0.40 – 0.90	0.03 Maximum				0.10 Maximum	Remainder
EN AW-6005	0.60 – 0.90	0.10 Max	0.35 Max	0.40 – 0.60	0.10 Max	0.10 Max	0.10 Max	0.10 Max		Remainder
EN AW-6351	0.70 – 1.30	0.10 Maximum	0.50 Maximum	0.40 – 0.80	0.40 – 0.80		0.20 Maximum	0.20 Maximum	0.15 Maximum	Remainder
EN AW-6060	0.30 – 0.60	0.10 Maximum	0.10 – 0.30	0.35 – 0.60	0.10 Maximum	0.05 Maximum	0.15 Maximum	0.10 Maximum		Remainder
EN AW-6061	0.40 – 0.80	0.15 – 0.40	0.70 Max	0.80 – 1.20	0.15 Max	0.04 – 0.35	0.25 Max	0.15 Max		Remainder
EN AW-6063	0.20 – 0.60	0.10 Max	0.35 Max	0.45 – 0.90	0.10 Max	0.10 Max	0.10 Max	0.10 Max		Remainder
EN AW-6082	0.70 – 1.30	0.10 Max	0.50 Max	0.60 -1.20	0.40 – 1.00	0.25 Max	0.20 Max	0.10 Max		Remainder

Mechanical Properties of Aluminium Sheets and Plates

Alloy	Temper	Yield Strength (Mpa)		UTS (Mpa)		Elongation (%)
		Minimum	Maximum	Minimum	Maximum	A 50mm (Minimum)
EN AW-1050 A Sheet	F	20		60		23
EN AW-1050 A Sheet	O	20		60	95	23
EN AW-1070 A	F	20		60		23
EN AW-1100	O			75	110	25
EN AW-2011 Sheet	T4	125		275		12
EN AW-2011 Sheet	T6	230		310		6
EN AW-2014	O		135		250	10
	T4	230		370		11
	T6	370		415		5
EN AW-2024 Perforated Sheet	O		150		250	10
	T3,T3510,T3511	290		395		6
	T8,T8510,T8511	380		455		4
EN AW-3003 Mesh Sheet	F	35		95		20
EN AW-3003 Mesh Sheet	O	35		95	135	20
EN AW-3103 Sheets	F	35		95		20
EN AW-3103 Sheets	O	35		95	135	20
EN AW-6101A Shim Sheet	T6	170		200		8
EN AW-6005 Sheet	T4	90		180		13
EN AW-6005 Sheet	T6	225		270		6
EN AW-6351 Sheet	O		110		160	12
	T4	110		205		12
	T6	250		290		6
EN AW-6060	T4	60	14	120		12
	T5	120		160		6
	T6	150		190		6
	T64	120		180		10
	T66	160		215		6
EN AW-6061	O		110		150	14
	T4	110		180		13
	T6	240		260		6
EN AW-6063	O				130	16
	T4	65		130		12
	T5	130		175		6
	T6	170		215		6
	T66	200		245		6
EN AW-6082	O		110		160	12
	T4	110		205		12
	T5	230		270		6
	T6	250		290		6

Get a Customized Quote for High-Quality Aluminium Products Tailored to Your Needs!

Types of Aluminium Sheets and Plates

Largest Aluminium Sheets and Plates Manufacturer and Exporter in Chennai, India

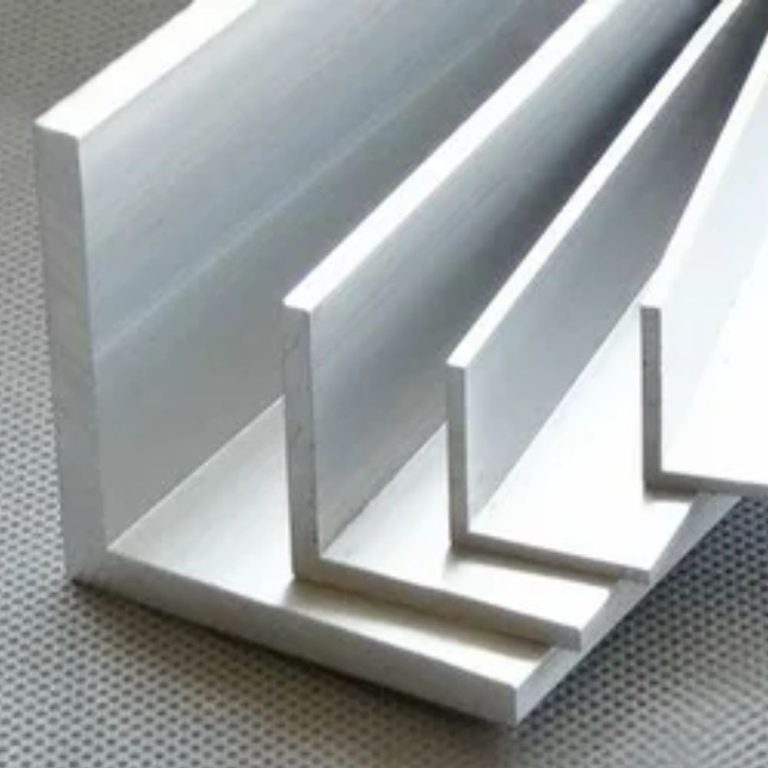

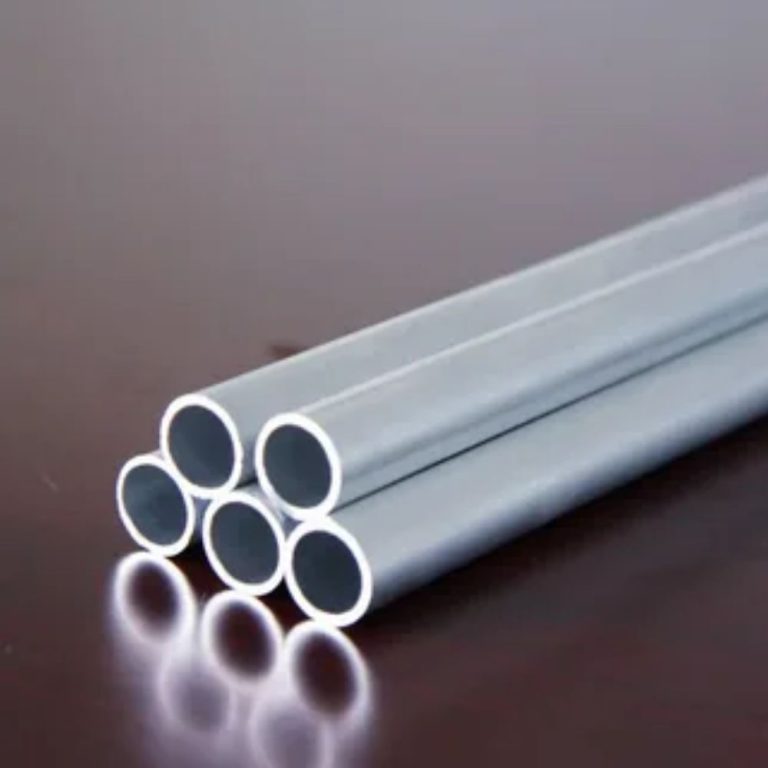

Chirag Aluminiun based in Chennai, India is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.

Equivalent Grades of Aluminium Sheets and Plates

STANDARD	WERKSTOFF NR.	UNS
Aluminium	3.1254	A96082

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Sizes Chart Of Aluminium Sheets and Plates

AL Sheet Size (In Inches)		Roofing Sheet Size (In milimeter)
.125″	.875″	3.18	22.2
.134″	1″	3.40	25.4
.156″	1.125″	3.96	28.6
.187″	1.250″	4.75	31.8
.250″	1.500″	6.35	38.1
.312″	1.750″	7.92	44.5
.375″	2″	9.53	50.8
.500″	2.500″	12.7	63.5
.625″	3″	15.9	76.2
.750″		19.1

Are Custom Sizes Available For Aluminium Sheets and Plates?

Yes, we offer custom sizes for Aluminium Sheets and Plates to meet specific project needs. Our team at Chirag Aluminiun is committed to providing customized solutions for all your requirements. For more details, contact us at sales@chiragaluminium.co.in

Uses of Aluminium Sheets and Plates

Aluminium Sheets and Plates find their way into industries that demand strength, lightweight performance, and resilience against environmental factors. In construction, they’re utilized for roofing, cladding, facades, and structural frameworks. The aerospace and automotive industries rely on them for body panels, aircraft skins, and engine components, thanks to their fantastic strength-to-weight ratio. In marine applications, they’re essential for shipbuilding and offshore structures. Additionally, they’re widely used in packaging, electrical enclosures, heat exchangers, and various engineering projects. Their recyclability, cost-effectiveness, and versatility make aluminium sheets and plates a top choice for modern industrial and commercial applications.
