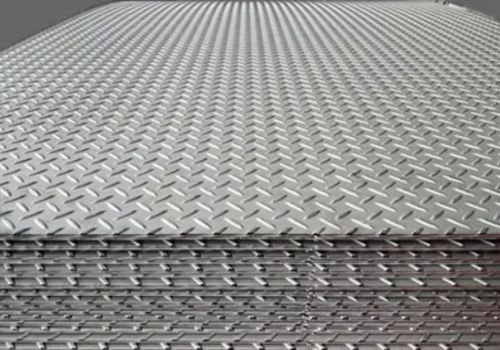

Chirag Aluminium is a reliable Chennai, India-based manufacturer and supplier that is at the forefront of providing superior aluminium solutions catering to various industries. The company, which is dedicated to quality, innovation, and customer satisfaction, provides Aluminium 6082 Chequered Plates, highly prized for their strength, corrosion resistance, and lightweight nature. The plates are specially designed to be durable and provide increased safety, courtesy of their anti-slip finish. A popular choice in flooring, transportation, and architecture, Chirag Aluminium’s Aluminium 6082 Chequered Plates equate functionality with durable performance, ensuring consistent solutions for industrial and commercial developments across diverse environments.
Aluminium 6082 Chequered Plates are produced using an aluminium–magnesium–silicon alloy, which generally contains 0.7–1.3% magnesium (Mg), 0.4–1.0% silicon (Si), plus traces of manganese, copper, iron, and chromium. The well-balanced composition offers superior strength, weldability, and resistance to corrosion. At a tensile strength of 260–310 MPa, yield strength of around 240 MPa, and elongation of 10–12%, these plates provide a hardness of 75–95 HB. Their mechanical properties render them extremely durable, whereas their slip-resistant nature makes them secure and ideal for extreme flooring, transportation, and structural use.
Standards : ASTM B209 / ASME SB209
Temper : O, T3, T4, T5, T6, T651 T6511
Thickness : 0.3-600
Width : 100-2600
Length : 500-10000
Surface : Bright, polished, hair line, brush, sand blast, embossed, etching, etc.
Finish :Mill, Customer specific finish
Aluminum Chequered Plate Coating : PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating
Type : Hot-Rolled (HR) / Cold-Rolled (CR) Chequered Plate
| UNS | EN | DIN | ISO | BS (OLD) | USA | WNR |
| A96082 | AW-6082 | AlMgSi1 | Al Si1MgMn | HE30 | AA6082 | 3.2315 |
| Weight% | Al | Si | Fe | Cu | Mn | Cr | Mg | Zn | Ti | Other Each | Others Total |
| Aluminium 6082 | Bal | 0.7 – 1.3 | 0.50 max | 0.10 max | 0.40-1.00 | 0.25 max | 0.06-1.20 | 0.20 max | 0.10 max | 0.05 max | 0.15 max |
| Tensile Strength, MPa | Yield Strength 0.2%, MPa | Elongation % | Hardness HBW |
| 295 | 240 | 8 | 95 |
Chirag Aluminiun based in Chennai, India is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
Yes, we offer custom sizes for Aluminium 6082 Chequered Plates to meet specific project needs. Our team at Chirag Aluminiun is committed to providing customized solutions for all your requirements. For more details, contact us at sales@chiragaluminium.co.in
Aluminium 6082 Chequered Plates find extensive application in industries that call for strength, security, and resistance to severe conditions. In commercial and industrial floor coverings, they are applied as non-slip walkways, ramps, platforms, and staircases. In transportation applications, they are applied in vehicle floors, bus steps, ship decks, and train interiors for safety as well as durability. Due to corrosion resistance and light weight, they find extensive application in architectural designs such as wall cladding, decorative panels, and structural frames. Also, they are used on heavy equipment, tank storage, and building platforms, offering a strong, long-lasting solution in applications where top performance is required.
